Monitoring with InfluxDB and Grafana¶

The CGSE provides mechanisms to monitor metrics from different processes and devices. These are collected by InfluxDB and are visualised by means of Grafana dashboards.

In this section, we explain how to install both InfluxDB and Grafana on the Server, how to set up and populate a database in InfluxDB, and how to visualise the metrics in Grafana dashboards.

Installation¶

InfluxDB3 Core¶

To install InfluxDB3 Core, execute this in a Terminal on the Server:

curl -s https://repos.influxdata.com/influxdata-archive_compat.key > influxdata-archive_compat.key

echo '393e8779c89ac8d958f81f942f9ad7fb82a25e133faddaf92e15b16e6ac9ce4c influxdata-archive_compat.key' | sha256sum -c && cat influxdata-archive_compat.key | gpg --dearmor | sudo tee /etc/apt/trusted.gpg.d/influxdata-archive_compat.gpg > /dev/null
echo 'deb [signed-by=/etc/apt/trusted.gpg.d/influxdata-archive_compat.gpg] https://repos.influxdata.com/debian stable main' | sudo tee /etc/apt/sources.list.d/influxdata.list

sudo apt-get update

sudo apt-get install influxdb3-core

For database management, you will need a token to interact with InfluxDB. This can be generated as follows (in a Terminal on the Server):

influxdb3 create token --admin

This will print out a token, starting with apiv3_. Export this value as environment variable INFLUXDB3_AUTH_TOKEN.

Grafana¶

To install Grafana, execute this in a Terminal on the Server:

sudo apt-get install -y apt-transport-https software-properties-common wget

sudo mkdir -p /etc/apt/keyrings/
wget -q -O - https://apt.grafana.com/gpg.key | gpg --dearmor | sudo tee /etc/apt/keyrings/grafana.gpg > /dev/null

echo "deb [signed-by=/etc/apt/keyrings/grafana.gpg] https://apt.grafana.com stable main" | sudo tee -a /etc/apt/sources.list.d/grafana.list
sudo apt-get update

sudo apt-get install grafana

sudo /bin/systemctl daemon-reload
sudo /bin/systemctl enable grafana-server

Database Structure¶

Database Name¶

In the current implementation, the name of the database in which all CGSE metrics are stored, is taken from the PROJECT environment variable. At a later stage, we could change this by means of a dedicated environment variable or by specifying it in the local settings file.

To inspect the names of the available databases, execute this in a Terminal on the Server:

influxdb3 show databases

The command to create a database manually (from a Terminal on the Server) is:

influxdb3 create database <database name>

Table Names¶

For each of the processes, we have a dedicated table in the database, the name of which is the same as the storage mnemonic of the process.

To get an overview of the available tables, execute this in a Terminal on the Server:

influxdb3 query --database <database name> "SHOW TABLES"

Content of the Tables¶

For each table, the column names are the names of the corresponding housekeeping/metrics parameters. The name of the column with the timestamp is TIME.

To get an overview of the columns for a given table in a given database, execute this in a Terminal on the Server:

influxdb3 query --database <database name> "SELECT COLUMN_NAME FROM INFORMATION_SCHEMA.COLUMNS WHERE TABLE_NAME = '<table name>'"

To get an overview of the data stored in a given table (sorted by ascending order of timestamp), execute this in a Terminal on the Server:

influxdb3 query --database <database name> "SELECT * FROM <table name> ORDER BY TIME"

Propagating Metrics to InfluxDB via Python¶

To populate the metrics in InfluxDB, we use the Python package influxdb3-python. This has been added to the pyproject.toml file of the cgse-common module.

When implementing a new device, nothing has to be done specifically to propagate the metrics to InfluxDB. This is automatically being taken care of in the serve method of the ControlServer class. In the section where the housekeeping information is written to a dedicated CSV file, the propagate_metrics method of the ControlServer class is called and this takes care of everything.

Visualisation of the Metrics¶

The Metrics are visualised in Grafana dashboards, but before we can start building those, we have to instruct Grafana to interpret InfluxDB as its data source.

Adding InfluxDB as Data Source¶

After the InfluxDB and Grafana processes have been started, you can access Grafana in your browser via http://localhost:3000.

On the left-hand side, select (under "Connections") "Add new connection" and search for "Influx DB". After clicking on the search result, a Settings tab will open, in which you have to enter the following information:

Name: Arbitrary name for the data source (it's a good idea to make this reflect the database you are settings up, e.g. influxdb3-ariel);
Query language: Select "SQL";
HTTP > URL: http://127.0.0.1:8181;
Auth: Only enable "Basic auth";
InfluxDB Details > Database: Name of the database for which you want to create Grafana dashboards;
InfluxDB Details > Token: InfluxDB token you have created earlier (see above; starting with apiv3_);
InfluxDB Details: Enable "Insecure Connection".

After having configured all of this, press "Save & test".

Creating Grafana Dashboards¶

Creating a Grafana dashboard can be done by clicking "Dashboards" on the left-hand side. In the "Queries" tab of such a dashboard panel, you have to specify the following information:

Data source: Name of the data source you have just created (selectable via a drop-down menu);
Table: Name of the table for which you want to visualise metrics. Remember that this is the same as the storage mnemonic of the process generating the metrics (selectable via a drop-down menu);

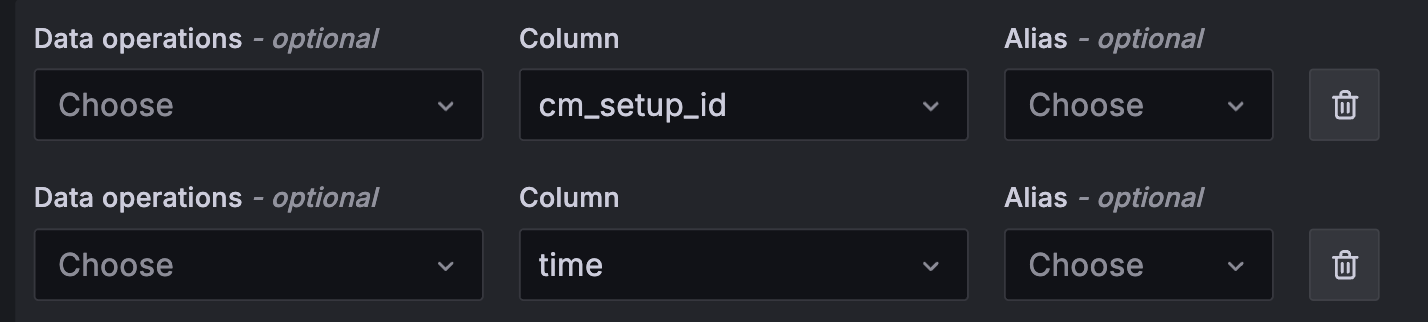

Data operations: Besides the name of the metric (selectable via a drop-down menu), you also have to add time under Data Operations, to make sure Grafana recognises and is able to show the timestamp in its panels. Have a look at the screenshot below for an example.

Open Questions¶

How can we specify the data retention period?
Is it ok to use the PROJECT environment variable as name of the database or should this be configurable (e.g. via the local settings, an extra environment variable)?
Is ms the desired write precision of the timestamp? Should this be configurable (via the local settings)?
